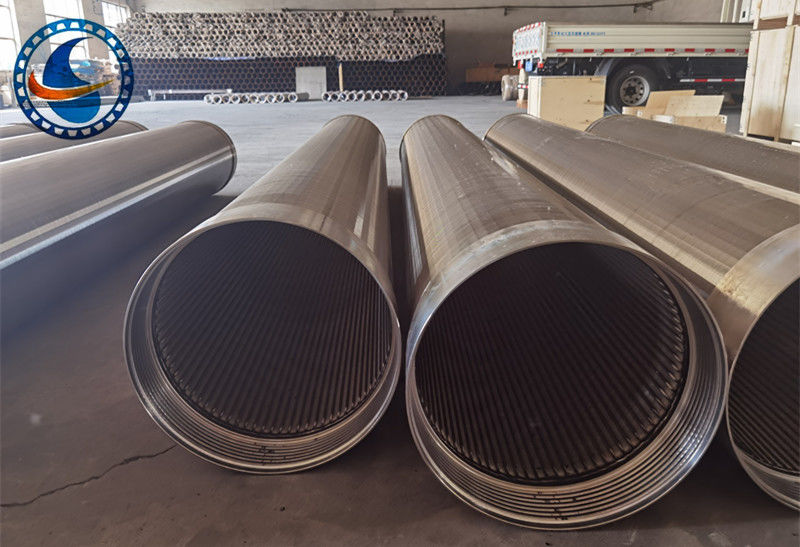

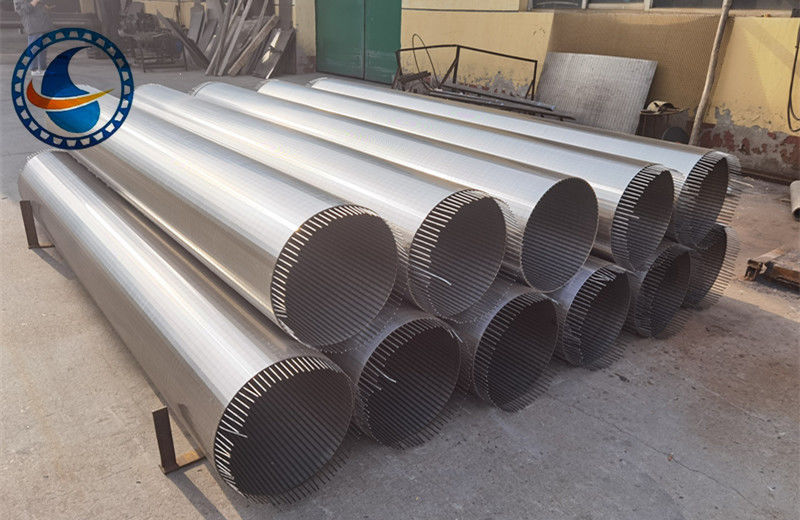

Name: SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 12-3/4”
Price: 200.00 USD
Availability: InStock

Hogar > PRODUCTOS > filtro para pozos del agua >

SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation

Water Well Screen Slot 40

Irrigation Water Well Screen

SS304L Water Well Screen

Lugar de origen:

Hengshui, Hebei, China

Nombre de la marca:

Heng Yuan

Certificación:

ISO9000

Número de modelo:

12-3/4”

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre:

Filtro para pozos del agua

Material:

304L de acero inoxidable

Diámetro:

325 mm

Longitud:

3 milímetros

Tamaño de la ranura:

1.0 mm

Alambre del abrigo:

3.0×4.6m m

Rod de apoyo:

ø4.0mm

No. de la barra:

55NOS

Conexión final:

STC API con rosca

Peso:

145KG/piece

Paquete:

Película de plástico

Usar:

En los pozos de agua para el control de la arena

Productos relacionados

Vídeo

SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation

Consiga el mejor precio

Vídeo

Stainless Steel 304L Rod Based Continuous Slot Wedge Wire Screen

Consiga el mejor precio

Vídeo

SS304 Vee Wire Water Well Screen Non Clogging Long Lasting Performance

Consiga el mejor precio

Vídeo

Ecrano de pozo de agua galvanizado con bajo contenido de carbono excelente resistencia a la presión

Consiga el mejor precio

Éntrenos en contacto con

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contacto ahora

Descripción de producto

12-3/4" Slot 40 Water Wire Screen For Irrigation

Commonly referred to as continuous slot or wire wrap screen, continuous slot water well screen was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands in the North Central United States.

These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production.

Continuous wire wrap screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.

Water Well Screen Regular Specifications:

Name:Continuous Slot Rod Based Water Well Screen,Oil Well Sand Screen,Water Well Screen, Wedge wire screen,Screen tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:23.5mm,2.23.5mm,34.6mm,35mm,36mm,36.5mm,3.26mm,47mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire Vee-shaped wire(mm)	Support rod Round wire(mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.03.5(Widthheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.03.5(Widthheight)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.03.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.06.0(Widthheight)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.23.5(Widthheight)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.04.6(Widthheight)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.06.0(Widthheight)	ø5.0MM×48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.23.5(Widthheight)	ø4.0MM×55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.04.6(Widthheight)	ø4.8MM×55
10-3/4	273.1	1.0	5.8	＞100	48	3.26.0(Widthheight)	ø5.0MM×55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.05.0(Widthheight)	ø4.0MM×56
14	355.6	1.0	2.9	＞80	37.8	3.05.5(Widthheight)	ø4.0MM×59
16	426	1.0	2.9	＞80	37.5	3.05.5(Widthheight)	ø4.0MM×64

Special specification can be made according to your need !

Water Well Screen Use:

Water Well,

Food &Beverage Screens,

Pharmaceutical & Biological industries,

Refining & Petrochemical,

Water Treatment & Liquid / Solids Separation,

Mineral & Aggregate Processing,

Pulp & Paper Screens.
