Name: 8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY062702
Price: 105.00 USD
Availability: InStock

Hogar > PRODUCTOS > Pantalla envuelta alambre >

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

8-5/8” Wire Wrapped Screen

Deep Well Wire Wrapped Screen

8-5/8" wedge screen filter

Lugar de origen:

Anping, Hebei, China

Nombre de la marca:

HengYuan

Certificación:

ISO, CIQ, SGS, CE

Número de modelo:

HY062702

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre:

El alambre envolvió la pantalla

material:

Acero inoxidable 304

longitud:

3 metros

Diámetro:

8-5/8”

Técnica:

Soldadura del punto

Características:

no-obstrucción

Aplicación:

filteration

Paquete:

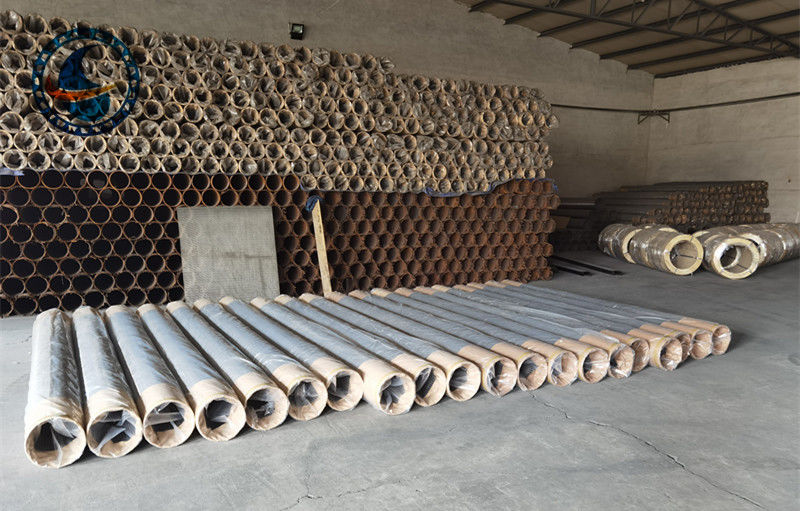

cajas de madera, envase

Productos relacionados

Vídeo

Rod Based Wire Wrapped Screen Of Stainless Steel For Water Wells

Consiga el mejor precio

Vídeo

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

Consiga el mejor precio

Vídeo

0.3mm Slot Wire Wrapped Screen Pipe Of SS316L For Oil Wells

Consiga el mejor precio

Vídeo

Pantalla de alambre del perfil, SS 304 Vee Wire Screen Tube, tubo envuelto alambre de la pantalla

Consiga el mejor precio

Éntrenos en contacto con

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contacto ahora

Descripción de producto

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

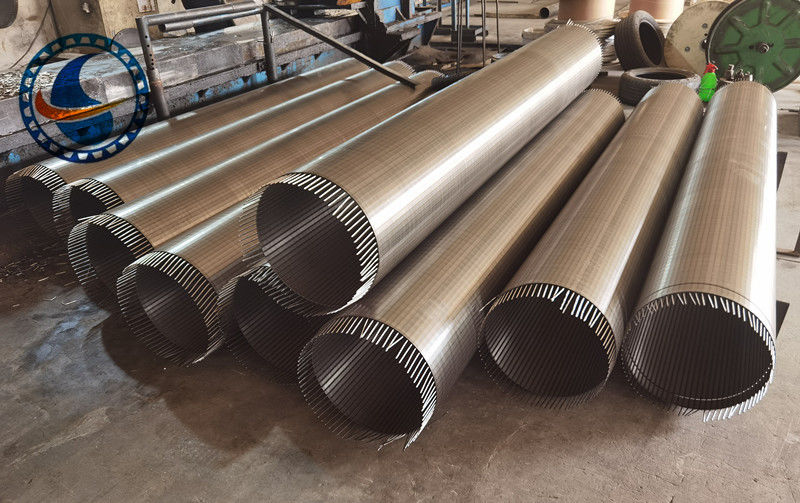

Wire Wrapped Screen for deep water well is manufactured by a Vee or wedge shaped wire around an internal array of longitudinal support rods.

Each intersecting point of these wire is fusion welded.

The Vee or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities,while at the same time keeps the majority of sand and gravel out of the well.

Wire wrapped screen pipe is made up of Vee-shaped wire and round rod in each intersection welded together.

Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.

The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.It has the firm structure, high temperature resistant, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.

It also can be used for a variety of medium.

Wire Wrapped Screen information:

Material	Stainless Steel or Low Carbon Galvanized steel
Diameter	3-1/2”, 4-1/2”, 6-5/8”, 8-5/8”, 10-3/4”, 12-3/4” etc.
Slot	0.5mm, 0.63mm, 0.75, 1.0mm, or as per customers’ requirement
Length	2.9m and 5.8m to fit container. Upto 6meters
End connection	Welded rings, Male/female threaded
Note	Parameters can be customized as per clients' requirements

If you have any enquires please feel free to contact us !

We can make the size according to your drawing.

Hengyuan factory located in Anping country , Hebei Province,China.

Hengyuan mainly products are : stainless steel vee sharped wire / wrap wire,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen,screen nozzle / water and gas strainer ,sieve plate ,slot mesh ,ARC screen ,header and hub laterals & hub radial laterals , pipe base , crimped wire mesh / stainless steel wire mesh / perforated wire mesh etc.
