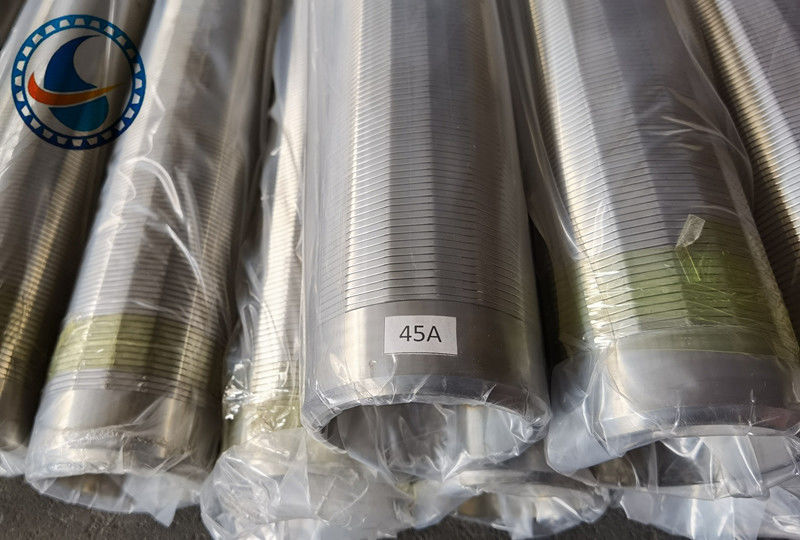

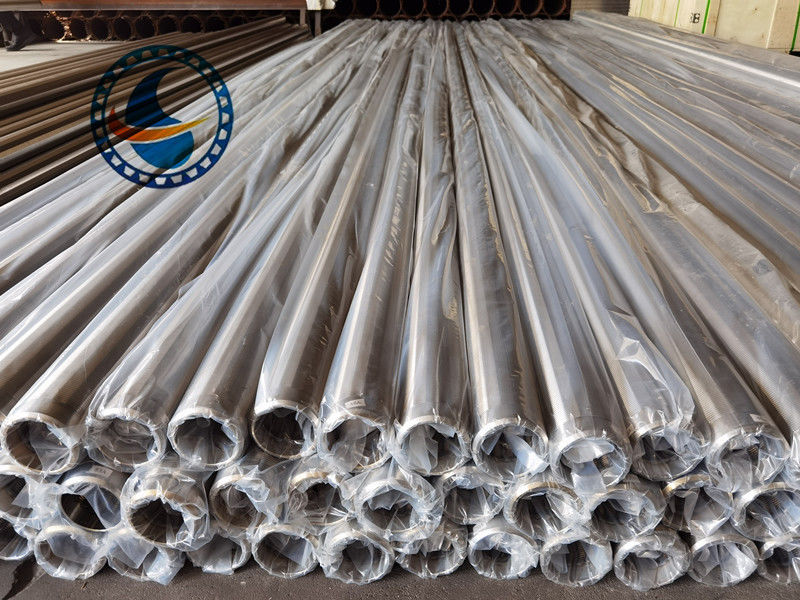

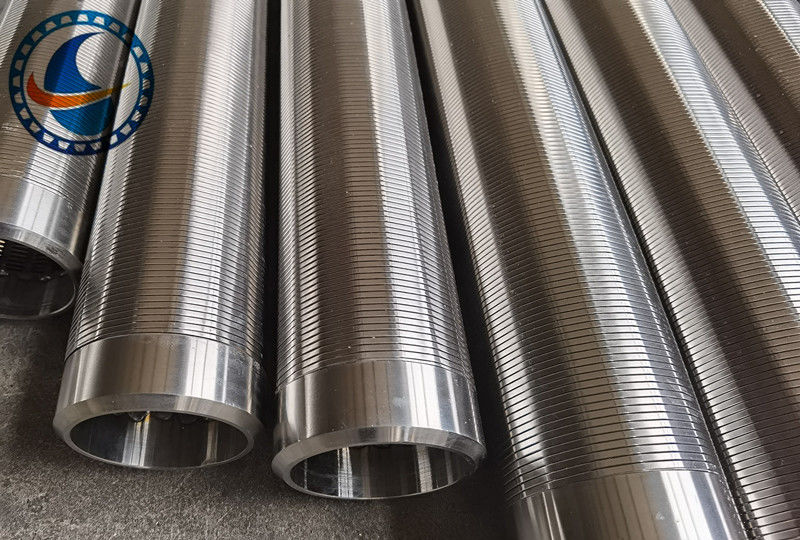

Rod Based Wire Wrapped Screen Of Stainless Steel For Water Wells

Rod Based Wire Wrapped Screen of Stainless Steel For Water Wells

It is also be named Vee-Wire screen pipe.Continuous slot Vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .

It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together .

Accurate slot and high filtration precision.

Material : low carbon wire ,stainless steel wire.

Diameter : 29-1200 mm ,can make as customers request

Length:10-3000mm

End connection :male/female threaded couplings ,welded rings/plain beveled ends ,flange ,closed end plate,same slot sieve plate.

Wedge wire screen is composed of support bars and profile wire,support bar can be round wire,triangle wire or trapezoid wire. profile wire can be triangle wire.

Wedge Wire screen product can be custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.

Wedge Wire cylinders are usually used as rotary screens, such as nozzles,in-line strainers, water intake screens, water well screens

Rod Based Wire Wrapped Screen Features:

• Wide range of wedge wire screens with slot widths from 0.05mm (50 microns) and open areas from 2% through to 40.0% provides solutions for many filtering and separation applications.

• One of the important features of wedge wire screen for filtering and separation is the continuous aperture or “slot”, which automatically provides a large open area guaranteeing a very low pressure drop through the filtering surface with a low tendency to blind or clog.

• “Slot widths” are very precise, but more so with looped wedge wire. This type being used for starch screens for the extraction of corn starch

• Due to the wires being wound close together and the large number of welds, wedge wire screens are inherently strong and able to provide extended life in such areas as industrial waste treatment.

• The continuous aperture and triangular wire section ensures there are only two particle contact points, which minimizes the risk of blinding and clogging.

• Segmental wedge wire screen floors can be designed for individual requirements in terms of finish, number of segments and diameters for the needs of the brewing and sugar industry.
•

Rod Based Wire Wrapped Screen Size:

If you have any enquires please feel free to contact us !

We can make any size according to your drawing.
