SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe

SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe

SS304 Vee-shaped Profile Wire

Wedge Wire Screen Filter Pipe

SS304 wedge wire screen filter

Lugar de origen:

Ciudad de Hengshui, Hebe Provincei, China

Nombre de la marca:

HengYuan

Certificación:

ISO,CO,FORM E,CIQ, etc

Número de modelo:

HY070803

Éntrenos en contacto con

Pida una cita
Detalles del producto
Nombre:
Tubo filtro de pantalla de alambre en cuña con perfil en forma de V
El material:
Acero inoxidable 304
Diámetro:
de una longitud igual o superior a 140 mm
Longitud:
Las demás:
Encajadura:
0.2 mm
El cable:
alambre de la uve de 1.5*2m m
Rod de apoyo:
alambre de la uve de 2*3m m
Finalidad:
Las demás:
Técnica:
Soldadura del punto
Características:
no-obstrucción
Aplicación:
filteration
Paquete:
Caja de madera
Tipo de empresa:
Fabricante
Tipo de filtro:
De exterior al interior
Descripción de producto

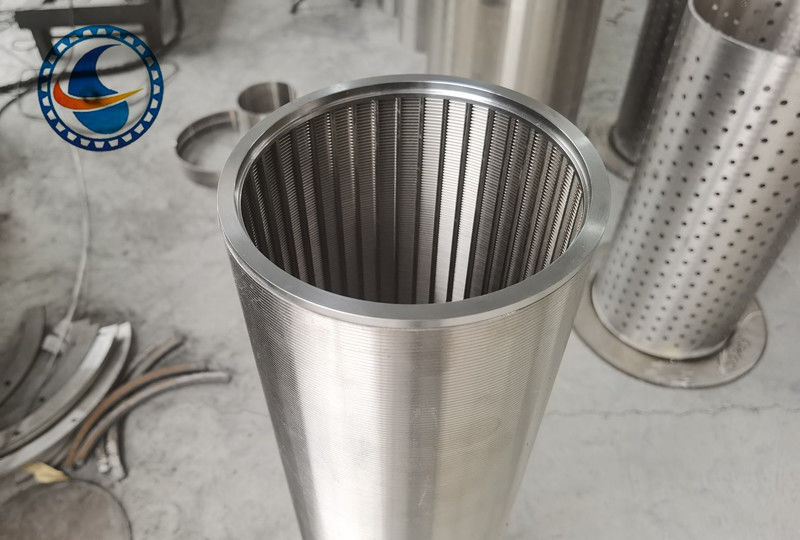

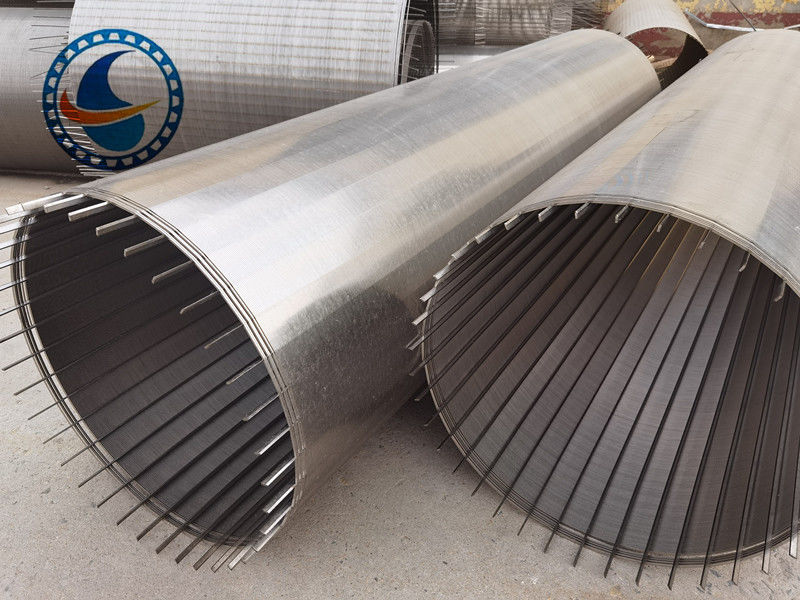

SS304 Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe





The surface profile of the wedge wire screen filter pipe comprises of a wire also known as V-shaped wire.



Remember, there are four types of surface profile available for a wedge wire filter,that is, flat wire, triangle wire, round wire, and trapezoid wire.



The primary material of surface profile in most wedge wire filters is steel due to its characteristics when it comes to filtration of fluids.



Depending on the directional flow of your fluid, the surface profile can either be horizontal or vertical.



The width size available for the surface profile ranges from 1.0mm to 4.0mm while the height varies from 2.0mm to 6.5mm.





Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Sizes:





Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507

Diameter : 26-1300 mm ,can make as customers request.

Slot: 0.02-100mm

Length :10-4000mm

End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.





Material

Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc.

Diameter

25mm-1300mm

Shape

Cylindrical

Slot

0.02mm-10mm

Thickness

4mm-12mm

Feature

Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large-and small-diameter deep wells

Application

--Architecture & Construction

--Food & Beverage Screens

--OEM Screen Components

--Refining & Petrochemical

--Waste Water Treatment

--Water Well & Oil well

--Coal & Mine

--Chemical industry

--Pharmacy

--Food and beverage

--Metallurgy

--Coal mining

--Environmental protectio





Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Features:


1. It has high mechanical strength, can bear large pressure drops.
2. The wedge-type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, used in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.



SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe 0
